Single Nautical – NSM

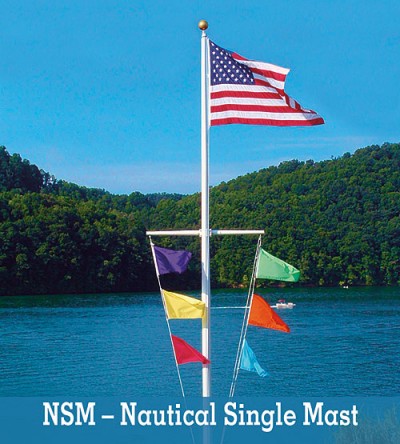

Nautical Single Mast Series – NSM

External Single Revolving with Yardarm – Rope Halyard

The Nautical Single Mast Series from Concord American Flagpole offers a nautical theme design incorporating a single shaft with yardarm in mounting heights from 25′ to 80′. While most popular in coastal and marine settings, the multiple halyard design is the perfect option when a multiple flag design is desired. The addition of an optional Gaff increases design possibilities.
Standard Specifications

• Gold Anodized Aluminum Ball

• Cast Aluminum Single Revolving Truck Assembly with Aluminum Pulley

• Two (2) Eye Hook mounted Single Pulleys on Yardarm

• Complete External Halyard Assembly

– Three (3) Rope Halyards – 5/16″ #10 Polyester

– Six (6) Stainless Steel Swivel Flagsnaps

– Six (6) Neoprene Flagsnap Covers

• Three (3) 9″ Heavy-Duty Aluminum Cleats

• Spun Aluminum FC-11 Flash Collar

• Galvanized 16-Gauge Corrugated Steel Ground Sleeve with Steel Grounding Spike

Standard Upgrades – 10″ and 12″ Butt Diameters

• Heavy-Duty Truck with Dual SEALED Bearing Assemblies

• Three (3) Rope Halyards – Heavy-Duty 3/8″ #12 Polyester

• Six (6) Heavy-Duty Stainless Steel Flagsnaps with Covers

• Heavy-Duty 5/8″ Ball Stem

• Heavy-Duty Cast Aluminum Collar
